Ball Mill

Date:2017-12-05
Views:603
Product Catalog:
Finness Rang:
Product description:Energy-saving Ball mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonfe
Product Details of Ball Mill:
Energy-saving Ball mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.

This Ball mill machine changes the intrinsic grinding mill structure. Its body and ground plank are an integral whole. So when fixing, it can be lowered on a plane surface once only. Use double tiered roller axletree with centripetal spherical surface as the support of the host axletree can reduce energy cost by 30%. The intrinsic grille pattern forcing evacuation is instead by over fall pattern controlling one. This can improve the milling of the granule and the quantity dealt with is reduced by 15-20%.

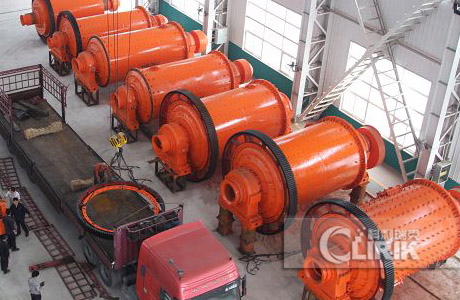

ball mill

Features Of Ball mill
1. high production capacity and crushing ratio;
2. low power consumption, uniform particle size;
3. simple structure, easy to operate;
4. low investment cost, big profit;
5. perfect services, both before-sales servies and after-sales services.

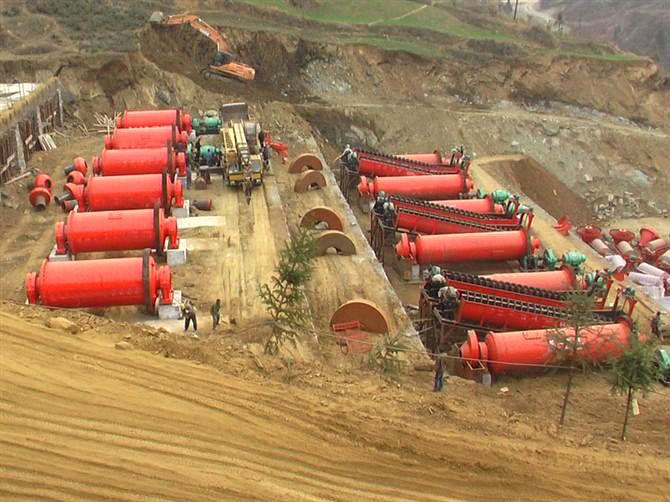

ball mill

Working principle of Ball Mill
The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.


ball mill

Technical Data of Ball Mill
ModelCylinder rotary speed(r/min)Loading ball weight(t)Input size(mm)Discharge size(mm)Capacity(t/h)Motor power (kw)Weight (t)
Ф900×1800391.5≤200.075-0.890.8-218.54.6
Ф900×3000392.7≤200.075-0.891-4225.6
Ф1200×3000363.5≤250.074-0.41.6-53712.8
Ф1200×4500325≤250.074-0.41.6-5.85513.8
Ф1500×3000277.5≤250.074-0.42-57515.6
Ф1500×57002812≤250.074-0.43.5-613024.7
Ф1830×30002511≤250.074-0.44-1013028
Ф1830×64002421≤250.074-0.47-1621034
Ф1830×70002423≤250.074-0.48-1824536
Ф2100×36002319≤250.074-0.410-3621046
Ф2200×45002127≤250.074-0.412-2328048.5
Ф2200×65002135≤250.074-0.414-2638052.8
Ф2200×70002135≤250.074-0.415-2838054
Ф2200×75002135≤250.074-0.415-3038056
Ф2400×45002130≤250.074-0.418-4532065
Ф2400×80002036≤250.074-0.420-4841081
Ф2700×36002139≤250.074-0.419-7540083
Ф2700×40002040≤250.074-0.420-7840085
Ф2700×45002048≤250.074-0.422-8543089
Ф3200×45001865≤250.074-0.429-140800137
Ф3200×54001881.6≤250.074-0.430-180800-1000146
Ф3600×45001788≤250.074-0.435-2101000190
Ф3600×600017117≤250.074-0.438-2401250-1500220
Ф3600×850017144≤250.074-0.445-2601800260
