Dolomite powder Raymond grinding mill price
Date：2021-09-09 Views：1782
The price of Raymond mill equipment for dolomite powder is composed of the main equipment of Raymond mill, crusher equipment, hoist, feeder, fan, motor, dust collector and dust collection system, and the price of powder packaging machine. The price of dolomite flour milling line should consider output and fineness.
Uses of dolomite powder
The use of dolomite actually refers to the use of dolomite powder. Dolomite powder is currently mainly used as a raw material for glassware, medical bottles, and optical glass.
Dolomite can be used as the refractory inner layer of the conversion furnace used in steelmaking, slagging agent, cement raw material, glass flux, kiln industry, fertilizer, building and decoration stone, paint, pesticide and medicine. It can be used in building materials, ceramics, glass and refractory materials, chemical industry, agriculture, environmental protection, and many other fields.
Since dolomite powder has so many uses, how to produce dolomite powder?
How to produce dolomite powder?

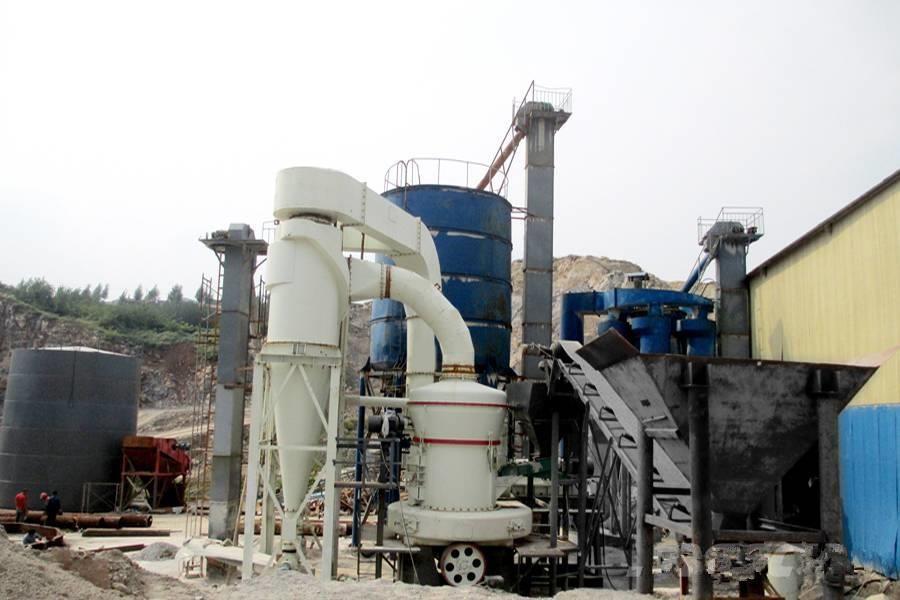

After the dolomite material is crushed to the required particle size, the material is sent to the storage hopper by the elevator.
Then the material is uniformly and continuously sent into the main grinding chamber of the Raymond mill by the vibrating feeder.
The material at the bottom of the Raymond mill is transferred by The blade is lifted and sent between the grinding roller and the grinding ring.
The purpose of crushing the dolomite is achieved due to the rolling and rolling of the grinding roller.
The crushed dolomite powder is brought by hot air to the powder analyzer on the top of the Raymond mill.
The qualified dolomite powder will pass through the analyzer, and the unqualified dolomite powder will fall back to the Raymond mill and be ground again until it is qualified.
The qualified dolomite powder passes through the analyzer and is sent to the powder collector by the air duct, and then waits for the packaging machine to be packed into bags.
Then the material is uniformly and continuously sent into the main grinding chamber of the Raymond mill by the vibrating feeder.
The material at the bottom of the Raymond mill is transferred by The blade is lifted and sent between the grinding roller and the grinding ring.
The purpose of crushing the dolomite is achieved due to the rolling and rolling of the grinding roller.
The crushed dolomite powder is brought by hot air to the powder analyzer on the top of the Raymond mill.
The qualified dolomite powder will pass through the analyzer, and the unqualified dolomite powder will fall back to the Raymond mill and be ground again until it is qualified.
The qualified dolomite powder passes through the analyzer and is sent to the powder collector by the air duct, and then waits for the packaging machine to be packed into bags.
We know the process flow of dolomite powder, so the point is, how much is the price of the dolomite Raymond mill equipment for dolomite powder? How much is the price of a dolomite Raymond mill host? What are the parts of the dolomite powder line quotation?
What is the dolomite powder Raymond mill price?
There are many models of Raymond mills used in dolomite milling, and the production costs and matching equipment for each model are not exactly the same.
The common models are as follows:
The common models are as follows:
| Model | Grinding Diameter(mm) | Input Size(mm) | Output Size(mesh) | Power(KW) | Capacity(t/h) | Overall Dimension(mm) |
|---|---|---|---|---|---|---|
| YGM9720 | 970 | 20 | 80-600 | 97 | 1.5-7.5 | 8200*6010*7200 |
| YGM1280 | 1280 | 20 | 80-600 | 145 | 2-10 | 8500*7500*8200 |
| YGM1300 | 1300 | 20 | 80-400 | 222 | 2-14 | 10100*9300*8330 |
| YGM1620 | 1620 | 30 | 80-400 | 322 | 2.5-18 | 10250*8090*10510 |
| YGM1720 | 1720 | 35 | 80-325 | 442 | 6-30 | 12500*12250*10400 |
| YGM2150 | 2150 | 35 | 80-325 | 572 | 12-40 | 12000*11600*11000 |
The larger the model, the larger the output and the higher the cost. In addition, in different periods, manufacturers offer different discounts for purchasing machines. Therefore, the actual price of dolomite pulverizing equipment is recommended to be subject to actual consultation. The price given here ($0.8-15 million) is for reference only!
The dolomite Raymond mill is used in the grinding of mineral materials in the fields of metallurgy, building materials, chemicals, mining, etc. It is suitable for processing various non-flammable and explosive ores with Mohs hardness below 6 and humidity below 6% , Such as limestone, slaked bauxite aggregate, activated carbon, talc, dolomite, titanium dioxide, quartzite, bauxite, marble, feldspar, barite, fluorite, gypsum, ilmenite, phosphate rock, clay , Graphite, clay, kaolin, diabase, coal gangue, wollastonite, slaked lime, zircon sand, bentonite, manganese ore, etc.

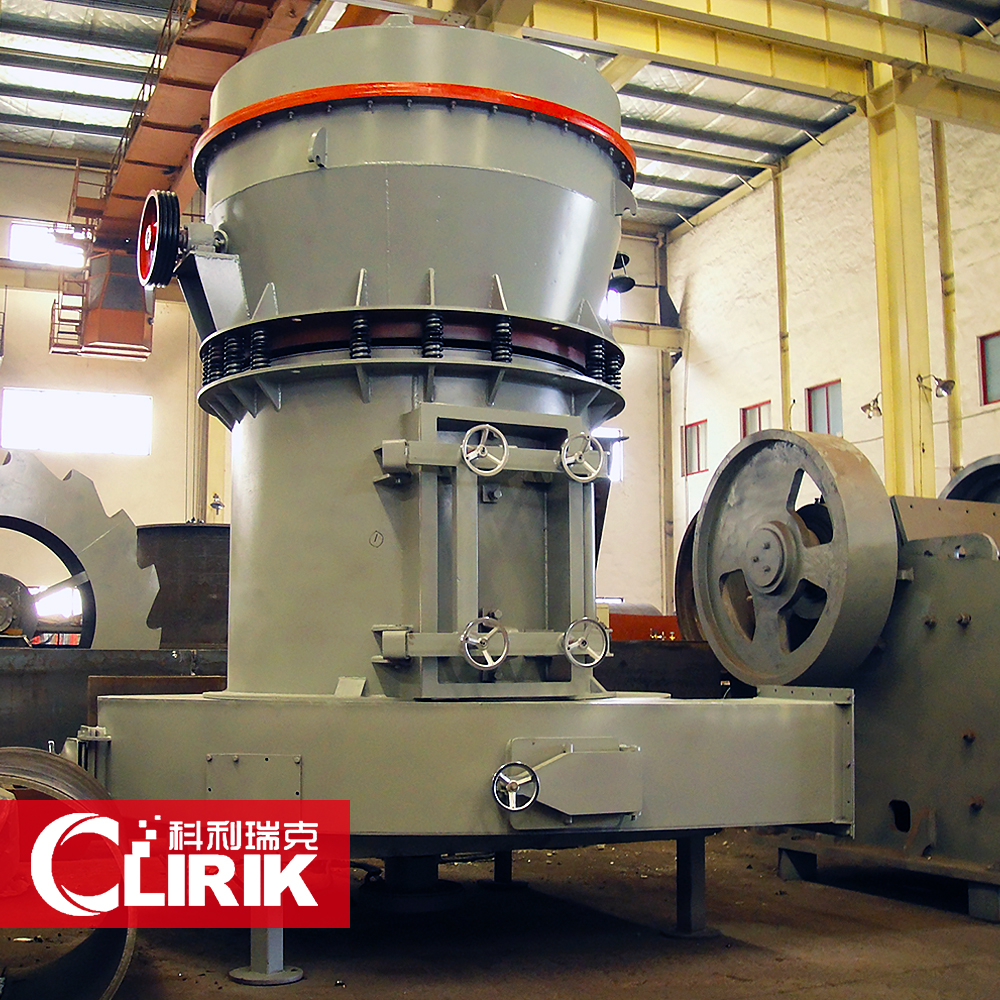

The dolomite Raymond mill is a dolomite powder milling machine with 80 mesh to 400 mesh. The configuration of the dolomite Raymond mill is affected by the fineness of dolomite powder and the output requirements. As long as you provide the dolomite powder you require For the body fineness and output requirements, we will give specific details for the complete set of dolomite crusher and dolomite mill line configuration plans. The price is reasonable and the performance is superior.
Who CLIRIK Machinery is?
Shanghai CLIRIK Machinery Co.,Ltd. has been committed to the field of ultra-fine powder grinding machines for 20 years.

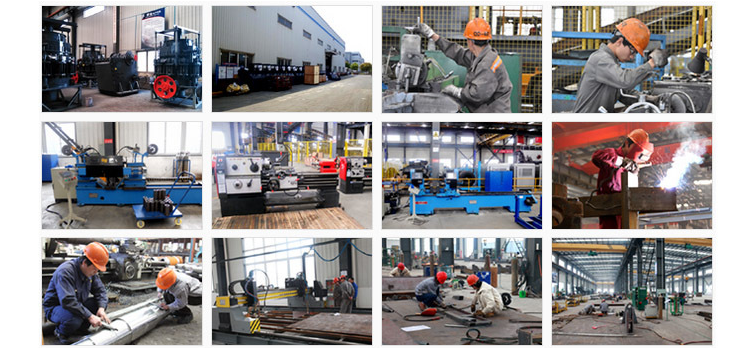

CLIRIK has a first-class manufacturing base with standardized and intelligent production lines.
CLIRIK's professional R&D, sales, installation and after-sales teams have provided door-to-door services to more than 100 countries and regions.
Which models can be selected for processing ultra-fine dolomite powder?
HGM grinding mill: 74-5 micron(200-2500 mesh); D97=5 micron
YGM Raymond mill: 613-33 micron(30-325 mesh); D90=30 micron
CLUM vertical roller mill: 20-5 micron(600-3000 mesh); D50=2 micron D97=4 micron
What information should customers give us in order to let us provide more efficient & suitable quotation and assistance?
1. What kind of material do you process?
2. What is output size do you need?
3. What is capacity do you need?
What's the payment terms?
Negotiable
Are customized products accepted?
Your idea, your choice, we design. Nothing is impossible. We are always waiting for you here, where are you.
What about the price?
We would give you a latest price according to the model and quantity.
How to get the latest quotation?
You can leave a message online or contact CLIRIK directly:
Email: sales@clirik.com
WhatsApp: +8613512155195/+8613917147829
