Why choose Raymond Mill to process waste glass?

From : clirik    Date : 2021-05-19 19:21
Regardless of how the waste glass is used, it must be crushed, sieved and crushed. For waste glass grinding treatmentShanghai Clirik Machinery Co., Ltd. manufactures Raymond vertical mill , YGM Raymond mill and MTM Raymond grinding roller mill. The fineness of the product is adjustable from 30 mesh to 325 mesh.

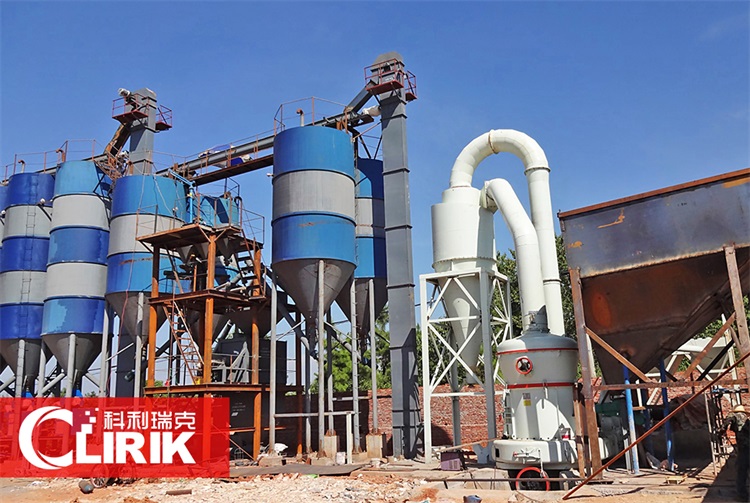

waste glass Raymond mill


Waste glass


Glass is a highly consuming product in people's daily life, but the utilization rate of waste glass is very low. The non-degradable nature of glass also makes waste glass a major household waste, harming the environment and wasting resources.

waste glass grinding


Uses of waste glass


To reuse waste glass, we need to understand the purpose of waste glass. At present, glass waste mainly includes the following:
  1. 1. Production of perforated glass blocks;
  2. 2. Production of solid glass beads;
  3. 3. Production of a high-speed road half-glass sphere luminous body;
  4. 4. Production of colored glass marbles for entertainment and decoration;
  5. 5. Production of foam glass products;
  6. 6. As a road pavement glass asphalt, it is non-slip and wear-resistant;
  7. 7. As an additive for external wall materials;
  8. 8. Glass wool products;
  9. 9. Manufacture of flat glass or float glass;
  10. 10. Production of decorative glass ceramic panels, decorative materials in granite glass and glass mosaics;
  11. 11. Production of paneled and printed glass;
  12. 12. Production of glass articles;
  13. 13. As additives for plastics, rubber and pigments;
  14. 14. Production of glass insulators for high voltage lines;
  15. 15. Glass sand can be used in house tiles and water purification coatings, etc.



Residual glass grinding process


Regardless of how the waste glass is used, it must be crushed, sieved and crushed. For waste glass grinding treatment, Shanghai Clirik Machinery Co., Ltd. manufactures MTM Raymond vertical mill , YGM Raymond mill and MTM Raymond grinding roller mill. The fineness of the product is adjustable from 30 mesh to 325 mesh.

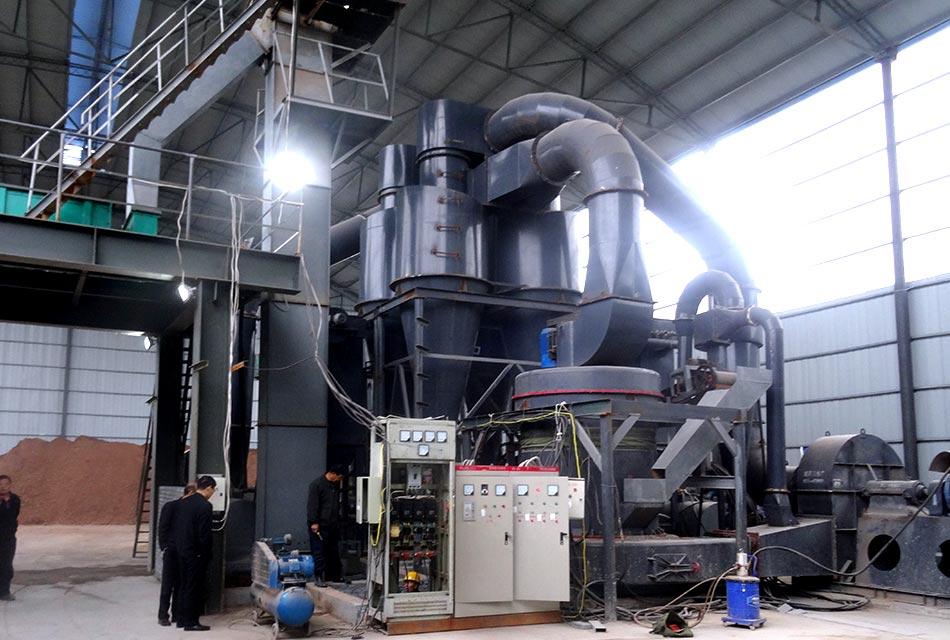

glass raymond grinding roller mill



Advantages of Raymond Glass Mill:


Although the different models of Raymond mills have their own advantages and the performance characteristics are not the same, in general, Raymond mills have the following advantages:
  1. 1. The whole Raymond mill is a vertical structure, with a relatively small footprint, sturdy system and strong complete set. Whether it is raw material processing, transport, milling and final packaging, it can be autonomous. An independent production system.
  2. 2. The electromagnetic vibration feeder is used to feed evenly, easy to adjust, small in size, light in weight, save fuel and electricity, and is easy to maintain.
  3. 3. Electricity can be centrally controlled and unattended operation can be done in the main computer room.
  4. 4. The main motor transmission device adopts closed gearbox, stable in transmission and reliable in operation.
  5. 5. Compared with other grinding equipment, the Raymond mill has a high sieving speed.The particle size of the finished product after the grinding of the Raymond mill can reach more than 99%, which is not achieved with other grinding equipment .




The working principle of Glass Raymond Grinding Mill:


When the Raymond mill is running, the material to be processed enters the grinding chamber of the main machine and Raymond grinds the glass. Due to centrifugal force when the main shaft rotates, the grinding roller oscillates and the upper end of the grinding roller is equipped with an automatic pressure spring. The grinding roller is pressed firmly onto the grinding ring and the blade of the vane lifts the material and sends it between the grinding roller and the grinding ring. With the grinding roller, the purpose of grinding and breaking is achieved. Select, the too fine material is returned to the grinding chamber for regrinding, and the qualified fine powder enters the cyclone dust collector with the air flow and is discharged through the powder tube to be the finished product. The air flow passes through the cyclone dust collector and then enters the fan to form a closed circuit, so that the machine runs continuously and normally. The exhaust air enters the dust collector through the exhaust air tube and is removed from the machine after purification.
