Micro Powder Grinding Mill

Date:2017-12-05
Views:675
Product Catalog:
Finness Rang:
Product description:Micro Powder grinding mill has been widely used in making fine powder or micro powder, which is applicable to non-flammable and non-explosive materials with hardness less than 6, such as the calcite, chalk, limestone, dolomite, kaolin, bentonite, talc
Product Details of Micro Powder Grinding Mill:
As one of the best Micro Powder grinding mill manufacturer or supplier, CLIRIK has developped and manufactured more and more advanced grinding machine. The Micron Powder grinding mill is kind of popular micro milling machine. The ultra fine powder mill is invented by absorbing advantages from the same trade home and abroad.

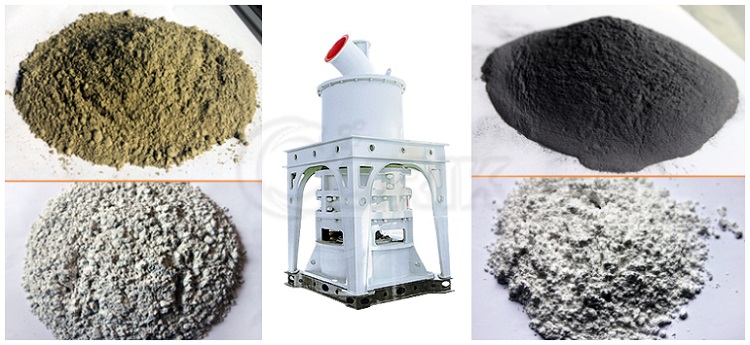

Micro powder grinding mill

Micro Powder grinding mill has been widely used in making fine powder or micro powder, which is applicable to non-flammable and non-explosive materials with hardness less than 6, such as the calcite, chalk, limestone, dolomite, kaolin, bentonite, talcum, talc, magnesite, illite, pyrophyllite, vermiculite, sattapulgite, rectorate, diatomite, barite, gypsum, alum earth, graphite, fluorite, variscite, potash ore floatstone,etc.

Micro powder grinding mill

Micro Powder grinding mill:
—— five models: HGM80, HGM90, HGM100, HGM100A, and HGM125
——application: HGM series Micron Powder grinding mill can process various kinds of stones and rocks, such as: Kaolin, limestone, calcite, marbles, barites, gypsums, pyrophyllites, dolomites, calcium carbonates, pigments, clays, coals, carbon black, activated carbons, feldspar, talc, mica, carbon black, petroleum coke, alumina, chromic oxide, quartz, cements, up to more than 100 materials.
——finished production fineness: 300meshes~3000meshes, 5-47 micron
——the capacity (ton/hour) ranges from 0.4T/H to 12T/H

Micro powder grinding mill

Features and advantages of Micro Powder grinding mill:
● High Efficiency
Under the same finished final size and the same motor power, the capacity of Micron Powder grinding mill is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.

● Long lifecycle of spare parts
The ring and roller are forged by special material with high utilization. Under the same grinding material and finish special size, the lifecycle of spare parts is about one year, which is 2-3 times longer than impact mill or turbo mill. Furthermore, the lifetime can reach 2-5 years for grinding calcite carbonate.

● High safety and reliability
As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.

● High fineness, flexible adjustment
The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97≤5μm.

●Environment-friendly
The application of pulse bag filter and muffler greatly alleviates dust pollution and noise.

●Advanced intelligent speed control device
Convenient adjusting, more uniform particle size.


Technical data of micro powder grinding mill:

ModelHGM80HGM90HGM100HGM125HGM168L
Ring Diameter(mm)800900100012501680
Ring Number (PCS)33-444     4
Roller Number(PCS)18-2124-2928-3630-4430-40
Main Shaft Speed (r. p. min)230-240 200-220180-200135-155120-130
Input Size (mm)≤10≤10≤15≤15≤20
Finished Size (um/mesh)
74-5
(200-2500)
74-5
(200-2500)
74-5
  (200-2500)
100-6
 (150-2000)
100-9
(150-1500)
Capacity (t/h)0.4-4.50.6-6.51-92-163.8-30
Outlet Size L*W*H (m)13.9*4*6.214.7*4.8*7.218*4.6*8.614*9*10.2526.3*7.5*11.9

Contact person: Risinn

E-mail: info@clirik.com
Tel: 86 13917147829
