Models: YGM7815,YGM8314,YGM9517,YGM4121,MTM1600.
Shell Size: 15-35mm
Grinding Weight: 1.2 - 11 t
Application: The slag Raymond mill, GGBS Raymond mill is widely used in small and medium mining, chemicals, building materials, metallurgy, refractories, pharmaceuticals, cement and other industries.
Output: 30- 425 mesh

Introduction of slag Raymond mill, GGBS Raymond mill:

Clirik slag Raymond mill, GGBS Raymond mill is suitable for processing various non-flammable and non-explosive mineral materials with Moh’s hardness less than 9.3 and humidity less than 6%, it is widely used in the fields of metallurgy, construction, chemical industry, mining, highway construction etc,. The granularity of the finished powder size can be adjusted between 50 and 325 mesh (315-45 micron). Examples of processing materials include quartz, feldspar, barite, calcite carbonate, limestone, talc, ceramic, iron ore, carborundum, rock, rock phosphate, coal and other materials, total about 400 kinds of materials.

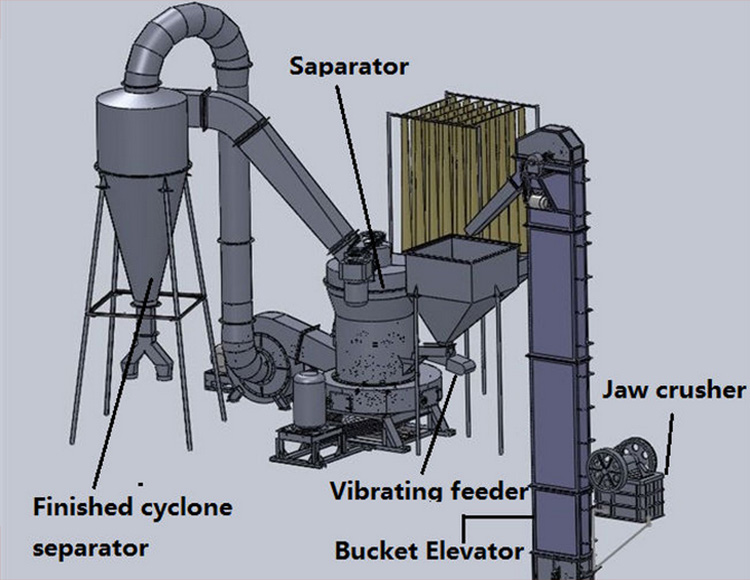

Structure of slag Raymond mill, GGBS Raymond mill
slag Raymond mill, GGBS Raymond mill is mainly composed of main unit, analyzer, fan, dischargeing cyclone separator, powder cyclone separator and air duct. Among them, the main unit consists of frame, blow shell, shovel, grinding roller and grinding ring.

Working principle of slag Raymond mill, GGBS Raymond mill
The rollers tightly rolled on the ring under the effect of centrifugal force. Shovel sends material between the roller and ring and the material is grinded into powder under the high pressure.Then the fan blows the power up into the analyzer. At this time, the power material met the fineness requirement get through the analyzer and get into the power cyclone separator while the others will be sent back for re-grinding.The whole system is airtight circulation.

Technical Parameter of slag Raymond mill, GGBS Raymond mill

Model	Roller			Ring		Feeding Size (mm)	Finished Size (mm)	Mill System Power (KW)	Capacity (t/h)	Overall Dimension (mm)
Model	Quantity (piece)	Diameter (mm)	Height (mm)	Inner Diameter (mm)	Height (mm)	Feeding Size (mm)	Finished Size (mm)	Mill System Power (KW)	Capacity (t/h)	Overall Dimension (mm)
YGM7815	3	260	150	780	150	15	0.613-0.033	35.7	1-3	430035005100
YGM9517	4	310	170	950	170	25	0.613-0.033	72.65	2.1-5.6	710059007900
YGM1280	3	370	240	1170	240	20	0.613-0.033	145.15	4.5-12	930056008200
YGM1300	4	410	280	1270	280	20	0.613-0.033	202.15	6.5-16	910082008400
YGM1620	4	450	300	1500	300	20	0.613-0.033	322.2	8-20	12500570010500
YGM1720	4	510	300	1720	300	35	0.613-0.033	450	10.5-28	11550950010500

Notice: Any change of slag Raymond mill, GGBS Raymond mill (Raymond roller mill) technical data shall not be advised additionally.

If you want to know the Raymond mill price or have any questions about slag Raymond mill, GGBS Raymond mill, please do not hesitate to contact us.
