Dolomite Raymond Mill

Date:2020-05-06
Views:501
Product Catalog:
Finness Rang:
Product description:Shanghai Clirik Machinery Co., Ltd is a large professional manufacturer of Dolomite powder raymond roller milling machine ,The Clirik Dolomite powder raymond roller milling machine have five models: YGM7815,YGM8314,YGM9517,YGM4121,MTM1600. S
Product Details of Dolomite Raymond Mill:
Shanghai Clirik Machinery Co., Ltd is a large professional manufacturer of Dolomite powder raymond roller mill,The Clirik Dolomite powder raymond roller mill have five models: YGM7815,YGM8314,YGM9517,YGM4121,MTM1600.

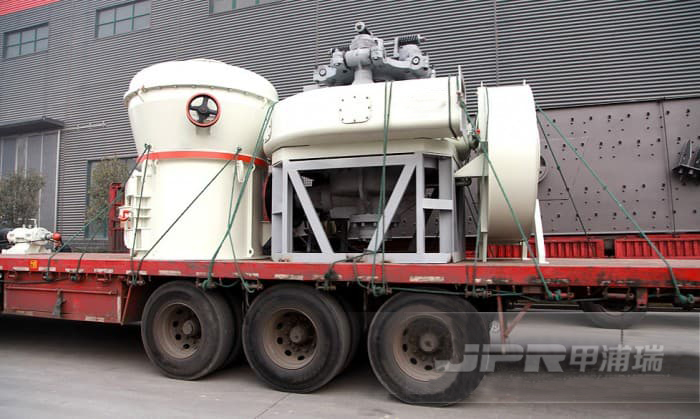

dolomite Raymond mill

Shell Size:15-35mm
Grinding Weight:1.2 - 11 T
Application:The Dolomite powder raymond roller mill is widely used in small and medium mining, chemicals, building materials, metallurgy, refractories, pharmaceuticals, cement and other industries.
Raw Material:such as gypsum, talc, calcite, limeOre, marble, barite, dolomite, granite, kaolin, bauxite, fly ash , oxidation iron oxide red, iron ore, etc.
Output:30 - 425 mesh

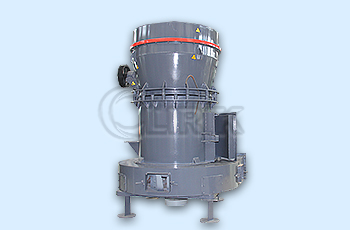

Dolomite Raymond Mill

Introduction of Dolomite powder raymond roller mill:
Dolomite powder raymond roller mill, also known as Raymond Grinder or Pendulum Grinder, is designed by CLIRIK Machinery with Germany technology. The Dolomite powder raymond roller mill is more efficient than ball mill in some area, with features of closed circuit for high fine powder devices.

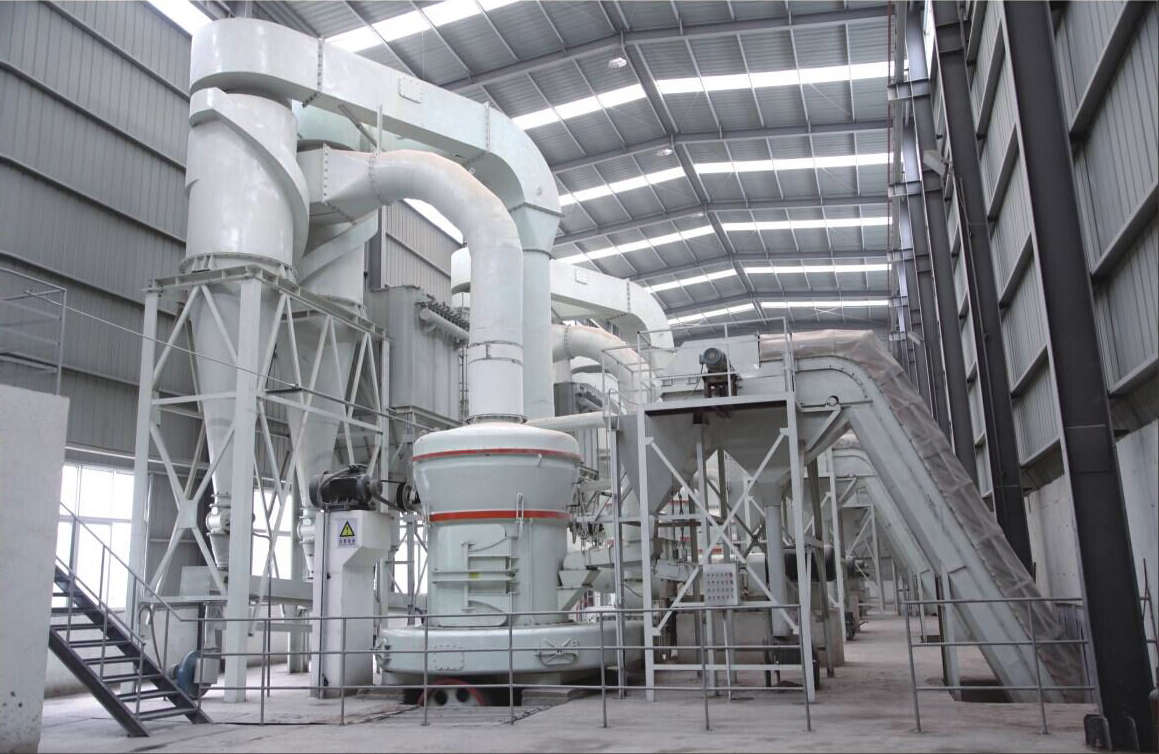

dolomite Raymond mill

Dolomite powder raymond roller mill Features :
1.Low production cost, high-performance
Overall for the vertical structure, small footprint, systematic, from raw material delivered to the milling and roughing to final packaging, of an independent production system
2.Good stability, high reliability
Raymond Host transmission device adopts enclosed gear boxes and pulleys, transmission smooth, reliable operation.
3.Perfect particle size
Electrical system adopts centralized control, milling workshop basic enabling unmanned operation.

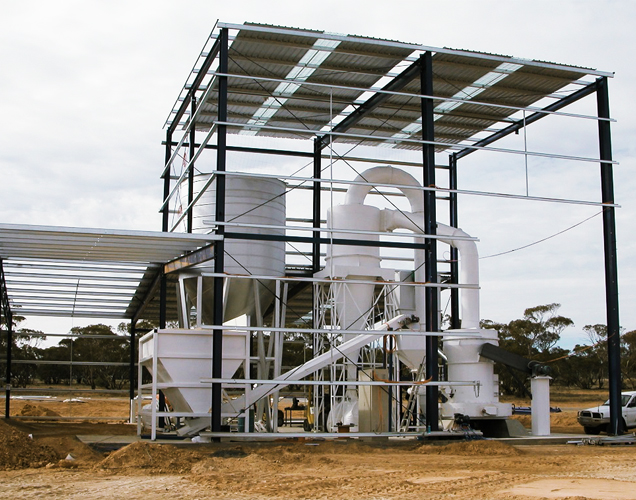

dolomite Raymond mill

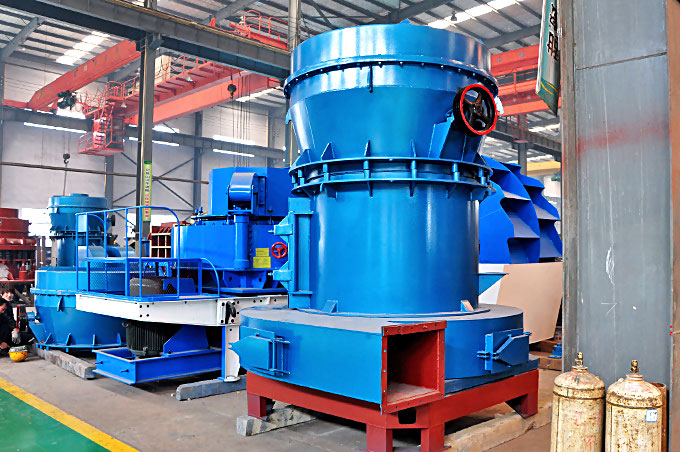

Structure of Dolomite powder raymond roller mill
Dolomite powder raymond roller mill(Rammond roller mill) is mainly composed of main unit, analyzer, fan, dischargeing cyclone separator, powder cyclone separator and air duct. Among them, the main unit consists of frame, blow shell, shovel, grinding roller and grinding ring.

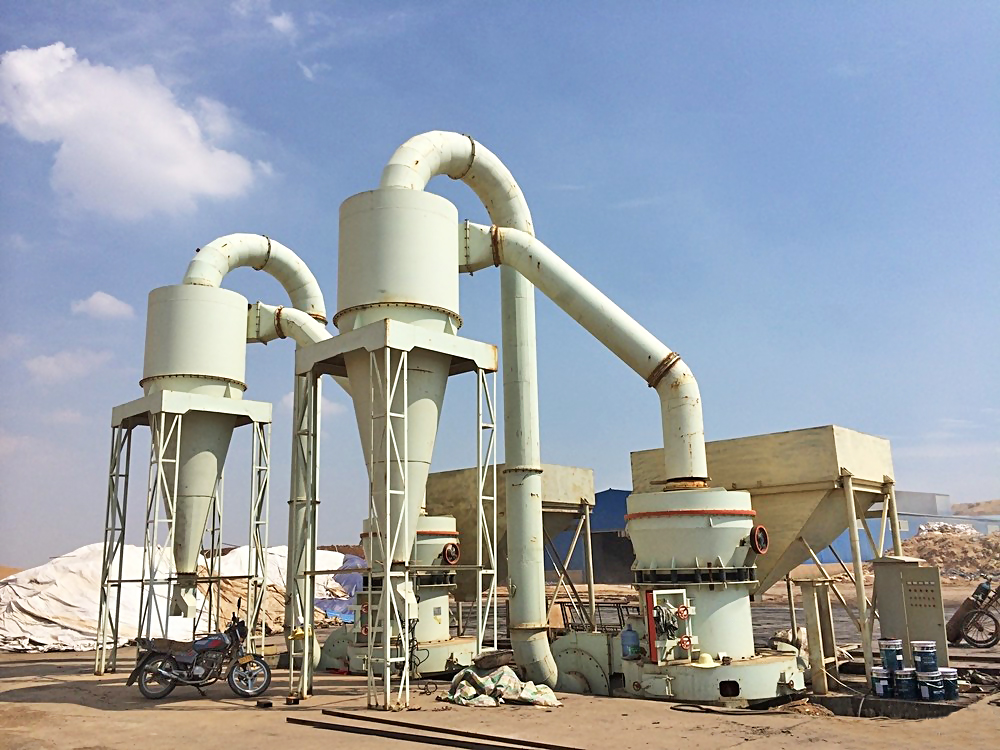

dolomite Raymond mill

Working principle of Dolomite powder raymond roller mill
The rollers tightly rolled on the ring under the effect of centrifugal force. Shovel sends material between the roller and ring and the material is grinded into powder under the high pressure.Then the fan blows the power up into the analyzer. At this time, the power material met the fineness requirement get through the analyzer and get into the power cyclone separator while the others will be sent back for re-grinding.The whole system is airtight circulation.

Technical Parameter of  Dolomite powder raymond roller mill


Model Roller Ring Feeding
Size
(mm)
Finished
Size
(mm)
Mill
System
Power
(KW)
Capacity
(t/h)
Overall
Dimension
(mm)
Quantity
(piece)
Diameter
(mm)
Height
(mm)
Inner
Diameter
(mm)
Height
(mm)
YGM7815 3 260 150 780 150 15 0.613-0.033 35.7 1-3 4300*3500*5100
YGM9517 4 310 170 950 170 25 0.613-0.033 72.65 2.1-5.6 7100*5900*7900
YGM1280 3 370 240 1170 240 20 0.613-0.033 145.15 4.5-12 9300*5600*8200
YGM1300 4 410 280 1270 280 20 0.613-0.033 202.15 6.5-16 9100*8200*8400
YGM1620 4 450 300 1500 300 20 0.613-0.033 322.2 8-20 12500*5700*10500
YGM1720 4 510 300 1720 300 35 0.613-0.033 450 10.5-28 11550*9500*10500

Notice: Any change of  Dolomite powder raymond roller mill technical data shall not be advised additionally.

If you want to know the Dolomite powder raymond roller mill price or have any questions about Dolomite powder raymond roller mill, please do not hesitate to contact us.
