Shanghai Clirik Machinery Co., Ltd is a large professional manufacturer of Four roller grinding mill: YGM9517 Raymond mill grinding mill ,The Clirik Four roller grinding mill: YGM9517 Raymond mill grinding mill have five models: YGM7815,YGM8314,YGM9517,YGM4121,MTM1600.
Shell Size:15-35mm
Grinding Weight:1.2 - 11 T
Application:The Four roller grinding mill: YGM9517 Raymond mill grinding mill is widely used in small and medium mining, chemicals, building materials, metallurgy, refractories, pharmaceuticals, cement and other industries.
Raw Material:such as gypsum, talc, calcite, limestone, marble, barite, dolomite, granite, kaolin, bauxite, fly ash , oxidation iron oxide red, iron ore, etc.
Output:30 - 425 mesh
introduction of Four roller grinding mill: YGM9517 Raymond mill grinding mill :
Four roller grinding mill: YGM9517 Raymond mill grinding mill , also known as Raymond mill Grinder or Pendulum Grinder, is designed by CLIRIK Machinery with Germany technology. The Four roller grinding mill: YGM9517 Raymond mill grinding mill is more efficient than ball mill in some area, with features of closed circuit for high fine powder devices.
Four roller grinding mill: YGM9517 Raymond mill grinding mill Features :
1.Low production cost, high-performance
Overall for the vertical structure, small footprint, systematic, from raw material delivered to the milling and roughing to final packaging, of an independent production system
2.Good stability, high reliability
Raymond mill Host transmission device adopts enclosed gear boxes and pulleys, transmission smooth, reliable operation.
3.Perfect particle size
Electrical system adopts centralized control, milling workshop basic enabling unmanned operation.
Structure of Four roller grinding mill: YGM9517 Raymond mill grinding mill

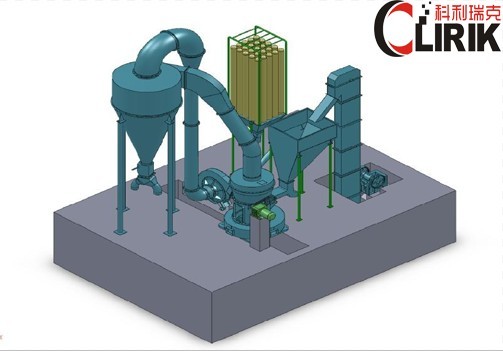

Four roller grinding mill: YGM9517 Raymond mill grinding mill (Rammond roller mill) is mainly composed of main unit, analyzer, fan, dischargeing cyclone separator, powder cyclone separator and air duct. Among them, the main unit consists of frame, blow shell, shovel, grinding roller and grinding ring.
Working principle of Four roller grinding mill: YGM9517 Raymond mill grinding mill
The rollers tightly rolled on the ring under the effect of centrifugal force. Shovel sends material between the roller and ring and the material is grinded into powder under the high pressure.Then the fan blows the power up into the analyzer. At this time, the power material met the fineness requirement get through the analyzer and get into the power cyclone separator while the others will be sent back for re-grinding.The whole system is airtight circulation.
Technical Parameter of Four roller grinding mill: YGM9517 Raymond mill grinding mill
| Model | Roller | Ring |
Feeding Size (mm) |
Finished Size (mm) |
Mill System Power (KW) |
Capacity (t/h) |
Overall Dimension (mm) |
|||
|
Quantity (piece) |
Diameter (mm) |
Height (mm) |
Inner Diameter (mm) |
Height (mm) |
||||||
| YGM7815 | 3 | 260 | 150 | 780 | 150 | 15 | 0.613-0.033 | 35.7 | 1-3 | 4300*3500*5100 |
| YGM9517 | 4 | 310 | 170 | 950 | 170 | 25 | 0.613-0.033 | 72.65 | 2.1-5.6 | 7100*5900*7900 |
| YGM1280 | 3 | 370 | 240 | 1170 | 240 | 20 | 0.613-0.033 | 145.15 | 4.5-12 | 9300*5600*8200 |
| YGM1300 | 4 | 410 | 280 | 1270 | 280 | 20 | 0.613-0.033 | 202.15 | 6.5-16 | 9100*8200*8400 |
| YGM1620 | 4 | 450 | 300 | 1500 | 300 | 20 | 0.613-0.033 | 322.2 | 8-20 | 12500*5700*10500 |
| YGM1720 | 4 | 510 | 300 | 1720 | 300 | 35 | 0.613-0.033 | 450 | 10.5-28 | 11550*9500*10500 |
Four roller grinding mill: YGM9517 Raymond mill grinding mill Price
If you want to know the Four roller grinding mill: YGM9517 Raymond mill grinding mill price or have any questions about Four roller grinding mill: YGM9517 Raymond mill grinding mill , please do not hesitate to contact us.
Phone: 0086-21-20236178
E-mail: info@clirik.com
Address: No.19 Fuqing Rd, Pudong New Area, Shanghai201201,China.
